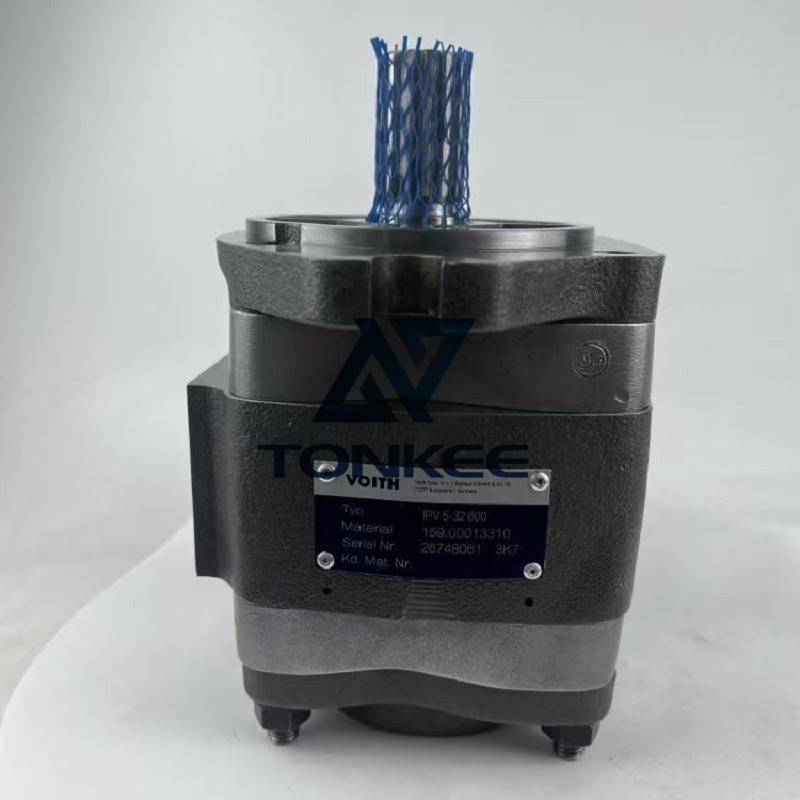

Voith IPV 5 - 32
Displacement per Revolution: 33.1
cm
3
Speed Range:
Minimum Speed: 400
min
−1
Maximum Speed: 3,000
min
−1
Delivery at 1,500 rpm: 49.6 l/min
Pressure:
Continuous Pressure: 315 bar
Peak Pressure at 1,500 rpm: 345 bar
Peak Pressure at nmax: 315 bar
Voith IPVS 5 - 64 101
Displacement per Revolution: 64.9
cm
3
Speed Range:
Minimum Speed: 400
min
−1
Maximum Speed: 2,200
min
−1
Delivery at 1,500 rpm: 97.3 l/min
Pressure:
Continuous Pressure: 230 bar
Peak Pressure at 1,500 rpm: 250 bar
Peak Pressure at nmax: 250 bar
